REVIEW: Shaper BenchPilot

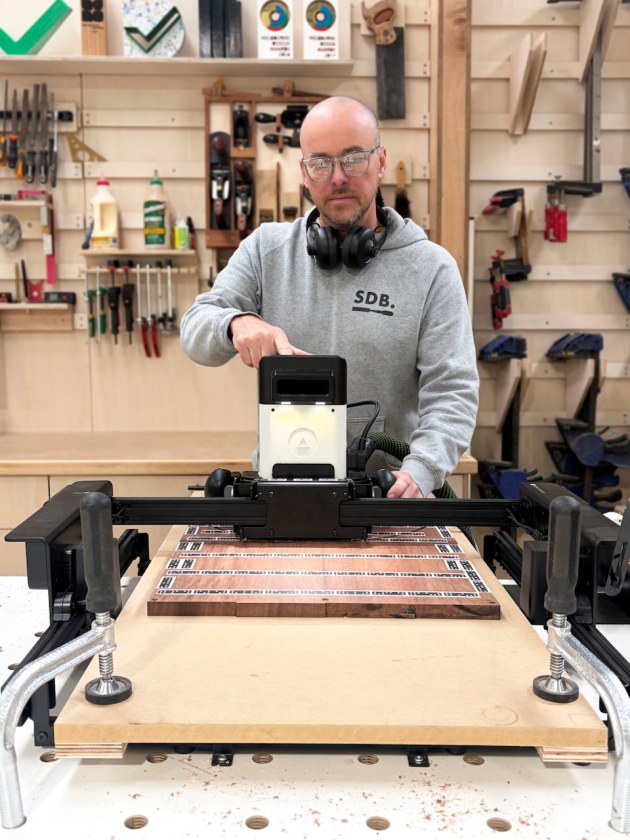

Above: The latest model with BenchPilot still operates with the same familiar interface and intuition of the Shaper.
Words and photos: Bryan Cush
When I first reviewed the Shaper Origin for Wood Review back in 2019, the clearest takeaway was its ability to produce a level of precision that, at the time, felt improbable for something without a fixed gantry. What became equally clear, though, were the trade-offs. That accuracy came at a cost, not in capability, but in terms of power. The relatively small 700 watt Festool router spindle required shallow passes, slower feed rates, and patience. The Origin rewarded restraint. It was never aiming to be a full CNC in sheep’s clothing, and that was part of its appeal.
Unboxing, set up and tuning took less than an hour.
Once you’ve spent an entire day batching parts on the Origin, a different limitation surfaces. Not in the quality of the cuts, but in the body of the person making them. The process of guiding the tool, holding position, and maintaining pace begins to accumulate. The act of following the on-screen path becomes more about endurance than intent. The tool remains precise, but the user begins to fatigue. This is not a criticism so much as an observation, and it is simply the nature of achieving this level of precision in a handheld unit.
For one-off work, for exploratory making, and for situations where responsiveness matters, that hands-on engagement is all part of the appeal. However, in batch production, where repetition replaces variation, it becomes a limiting factor.

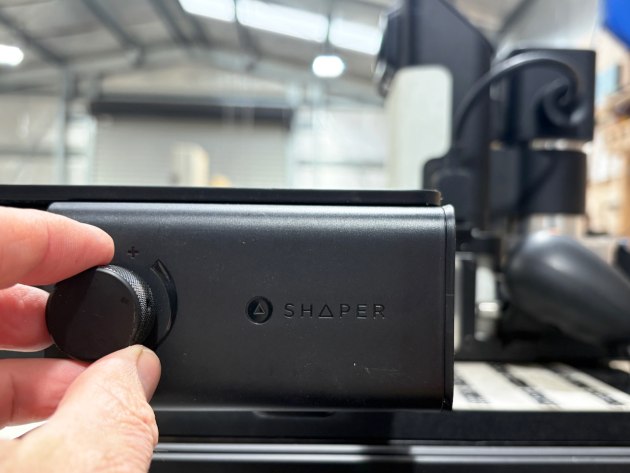

The variable feed rate speed knob is a brilliant addition.
It is into this context that BenchPilot enters the room. At first glance, it looks like a straightforward extension of the system, a mounting XY axis platform that allows the Origin to operate in a more controlled way. In practice, it shifts something more fundamental by removing the need to physically guide the tool, while leaving the familiarity of the Shaper workflow largely intact. Assembly and initial set-up are straightforward. From unboxing to first cuts took approximately 50 minutes, with most of that time spent aligning and familiarising myself with the gantry and mounting process. It is not complex, but it does require a bit of attention to detail to ensure everything is running square and smoothly.
You still define your cuts, prepare your material, and establish reference grids. But once engaged, the movement is no longer yours to manage. The Origin follows the programmed path with a consistency that does not change. The most noticeable difference is not speed, but repeatability. There is no gradual drift in pressure or alignment, and no small corrections creeping in, because the variable of human fatigue has been removed.

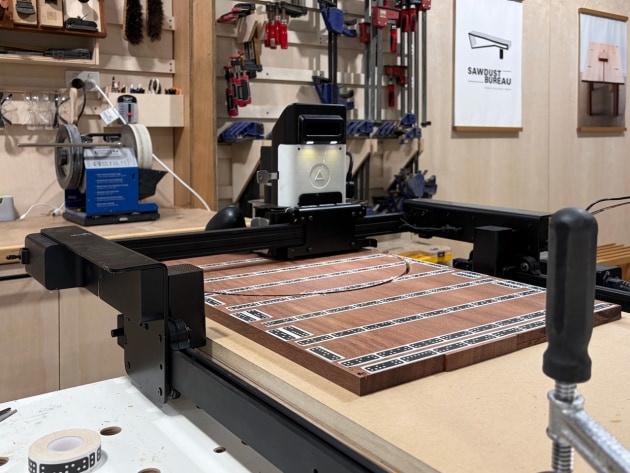

Handheld CNC is now hands-free as well – Benchpilot working on its own.
Improved consistency is particularly noticeable in pocketing operations. When Origin is driven by hand, pocketing cuts rely on maintaining an even rhythm and overlap. With the BenchPilot, that process becomes fully automated. Origin calculates the toolpath internally, stepping over by half the diameter of the bit and working its way through the material in a consistent pattern down to the finished depth. The result is a noticeably more even surface finish and predictable cutting behaviour. There are no missed sections, no uneven overlaps, and no subtle ridges left from inconsistent movement. It is one of the clearest examples of where automation improves not just efficiency, but also the end result.
The Origin still remains somewhat restricted by its 700 watt spindle motor. Cuts need to be approached conservatively, depths managed in multiple passes, particularly in hardwoods, and feed rates kept within what the spindle can realistically handle. BenchPilot features a variable feed rate speed control knob, which can be adjusted mid-cut, a valuable addition for fine-tuning cut quality. It guides with mechanical consistency, but the cutting power remains that of a handheld router. It is a reminder that the BenchPilot improves how the tool operates, not what it is capable of removing, and expectations need to be managed accordingly.

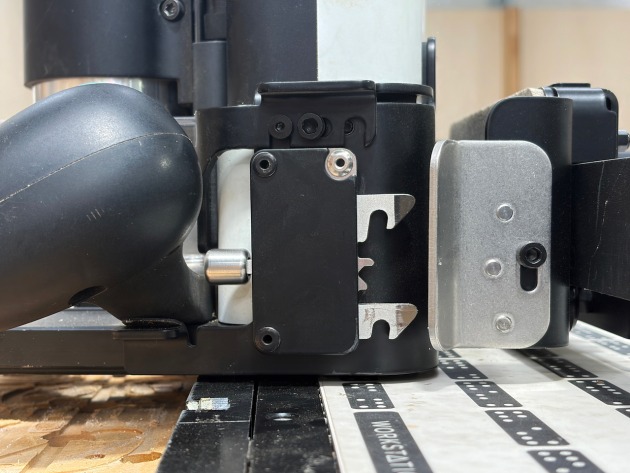

Close-up of the locking mechanism to engage the BenchPilot.
When the Origin is handheld, control is immediate. You are constantly responding to the cut, adjusting in real time as the tool moves. With the BenchPilot, responsiveness is replaced by advanced planning. Decisions are made before the cut begins, rather than during it. You can observe rather than guide, and work on other projects, however the direct feedback between hand and material is reduced, replaced by a level of trust in the set-up.
During operation, the Origin displays cut time remaining. While it is a useful feature, giving a clear sense of progress without needing to track each stage manually, there is no option for a more detailed breakdown of which pass is currently running, or the depth or offset of the cut. It’s a minor gripe, but advanced users may prefer a more developed interface providing more information to align it more closely with a traditional CNC workflow.

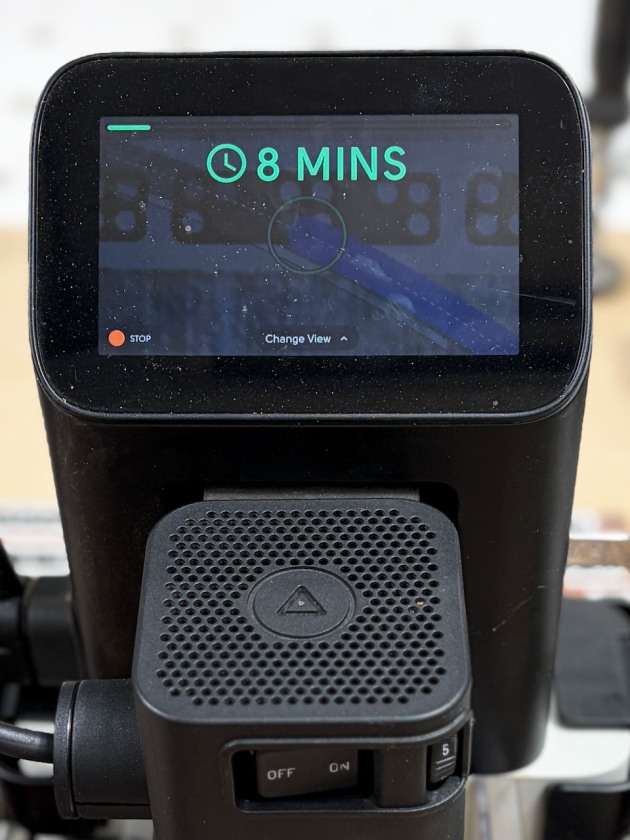

The simplified interface on the Shaper when BenchPilot is in operation.
Once all cuts are complete, the spindle lifts clear of the workpiece, but does not automatically shut off. The router continues spinning until the user intervenes. Here BenchPilot feels less like an autonomous machine and more like a workshop aid requiring supervision. Dust and chips may accumulate if extraction is not well managed, whereas when the Shaper is handheld, chip build-up is obvious.
It is also possible to accidentally leave elements from a previous cut active and unknowingly run them with the wrong settings. This means something intended as a light rebate can accidentally become a full-depth cut. In my case, it resulted in plunging straight through the front of a memory box while attempting to cut rebates for locking hardware. A small lapse, but the tool did exactly what it was told to do. It is the type of costly mistake that becomes less frequent with experience, but for all its automation, the BenchPilot does not remove human responsibility.

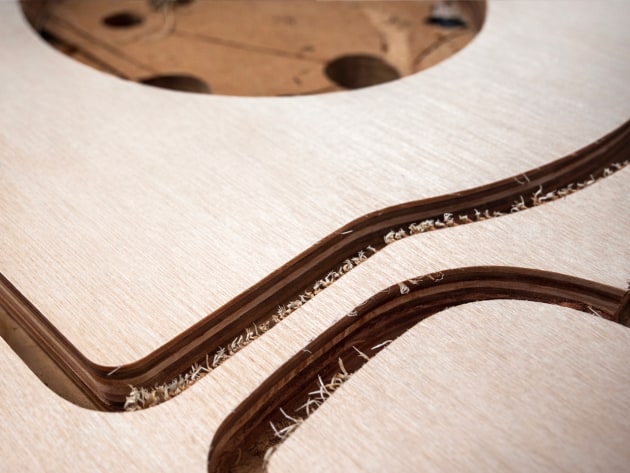

BenchPilot cutting birch ply.
The hybrid nature of the system remains one of its strengths. Origin can be undocked from the BenchPilot at any point and returned to handheld use. Flexibility remains central to the Shaper approach however at the same time, the BenchPilot introduces a physical constraint. Unlike the handheld Origin, it cannot be taken to a finished surface or installed element. For example, you can’t cut a floor inlay with the BenchPilot in the same way you might with a user-driven Origin.
When paired with Origin’s Workstation, the cutting area is limited to approximately 460mm wide by 280mm deep. Within that zone it performs exceptionally well. Joinery, inlays, and smaller components all sit comfortably inside that footprint. The Workstation makes automation with BenchPilot for batching components with vertical orientation clamping extremely straightforward, something not quite so simple on a standard CNC.

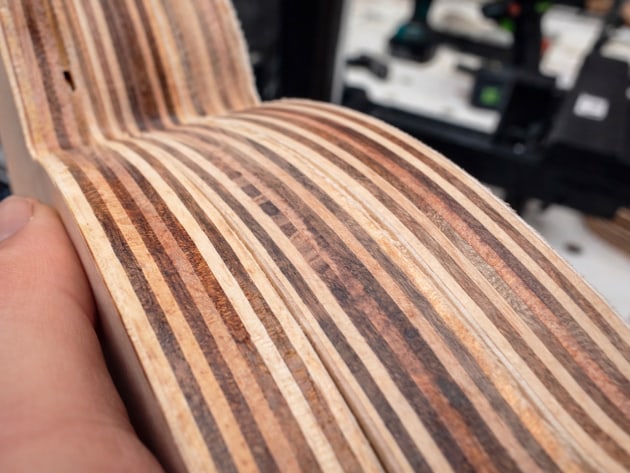

Quality of cut straight off the top is a dramatic improvement over hand driven Shaper Origin.
Extending the standard cut area relies on a pass-through approach. This allows long components to be machined in stages, feeding the material through the system while maintaining positional accuracy. Where it differs from small gantry-style CNC machines is in how that positioning is maintained. Rather than relying on the workpiece being moved a fixed increment, the BenchPilot references directly off the Shaper tape. This removes the need for precise indexing between passes as the Shaper re-orientates its position from the domino tape pattern rather than the material itself.
It is a subtle but meaningful advantage, reducing set-up complexity and one of the more error-prone aspects of working with small-bed CNC systems. However, this flexibility only applies in one direction. The maximum width remains 460mm, as the material must pass between the gantry rails. When used without Workstation, the workpiece must have a support sled to bring it up to meet the underside of the Shaper by approximately 58mm, including the depth of the workpiece. There is a 6mm vertical adjustment in the cradle, which assists with fine-tuning the setup.
Overall conclusion
This is still not a system designed for high-volume production, but for controlled, repeatable work at a considered pace. Cost is another factor. The BenchPilot builds on an already significant investment in the Shaper ecosystem, and while each component has its place, the combined cost would equate to a basic gantry-style CNC set-up.
Ultimately, the BenchPilot addresses a very specific limitation of the original tool. It removes the physical strain associated with repetitive, precision work while maintaining the flexibility that made the Origin appealing in the first place. It does not expand capability, or fundamentally change what the tool can do. What it changes is how consistently, and how comfortably, you can do it.
First published in Australian Wood Review, issue 131, June 2026
Shaper Origin and BenchPilot supplied for review and available from Timbecon at www.timbecon.com.au
Read Bryan Cush’s review 2019 review of the Shaper Origin tool he bought and set up years before it was available locally here
Bryan Cush @sawdustbureau is a designer maker and architect who works from his Ballarat, Victoria studio. Influenced by Scandinavian and Japanese craft, his bespoke and collaborative works most often highlight native timbers. Learn more atwww.sawdustbureau.com
